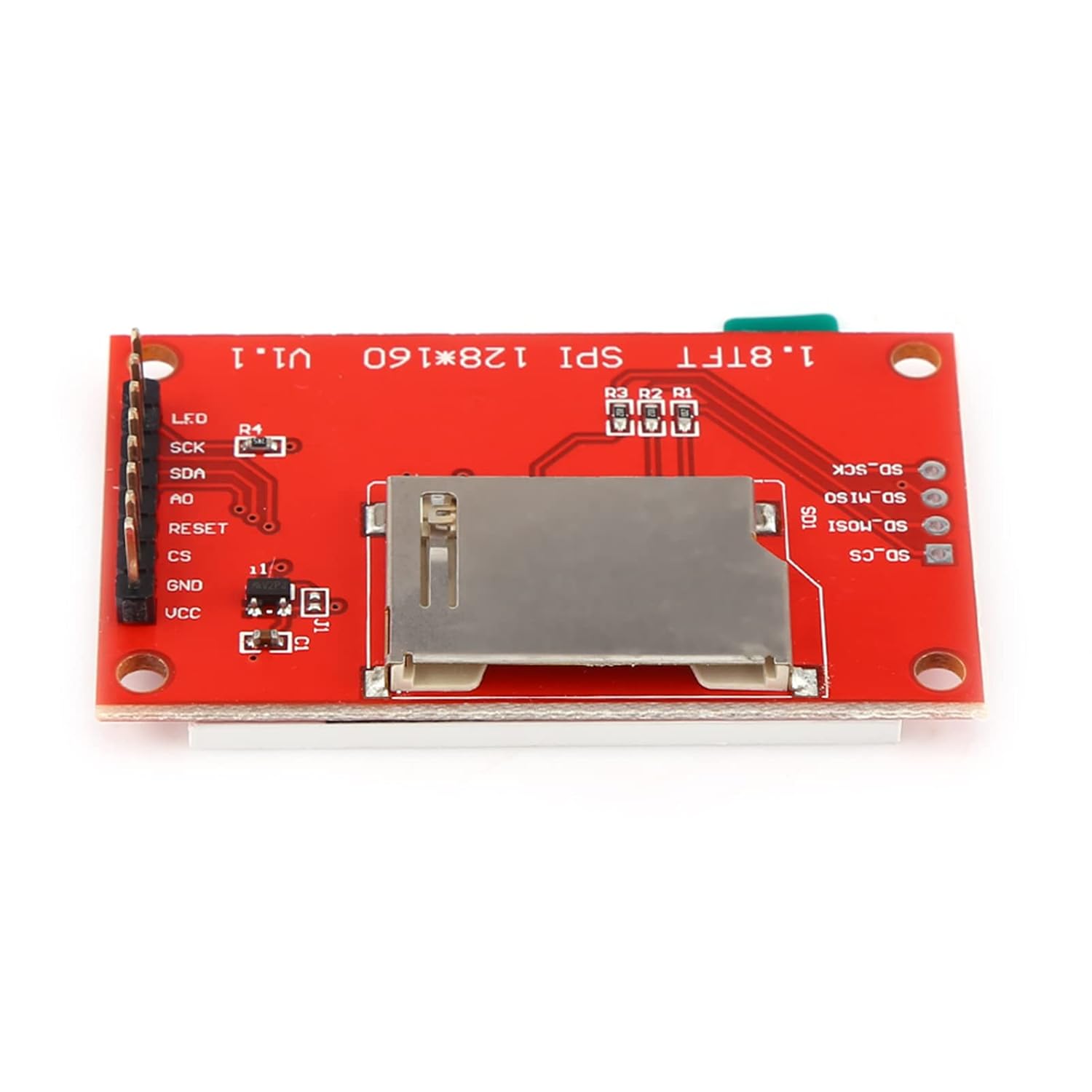

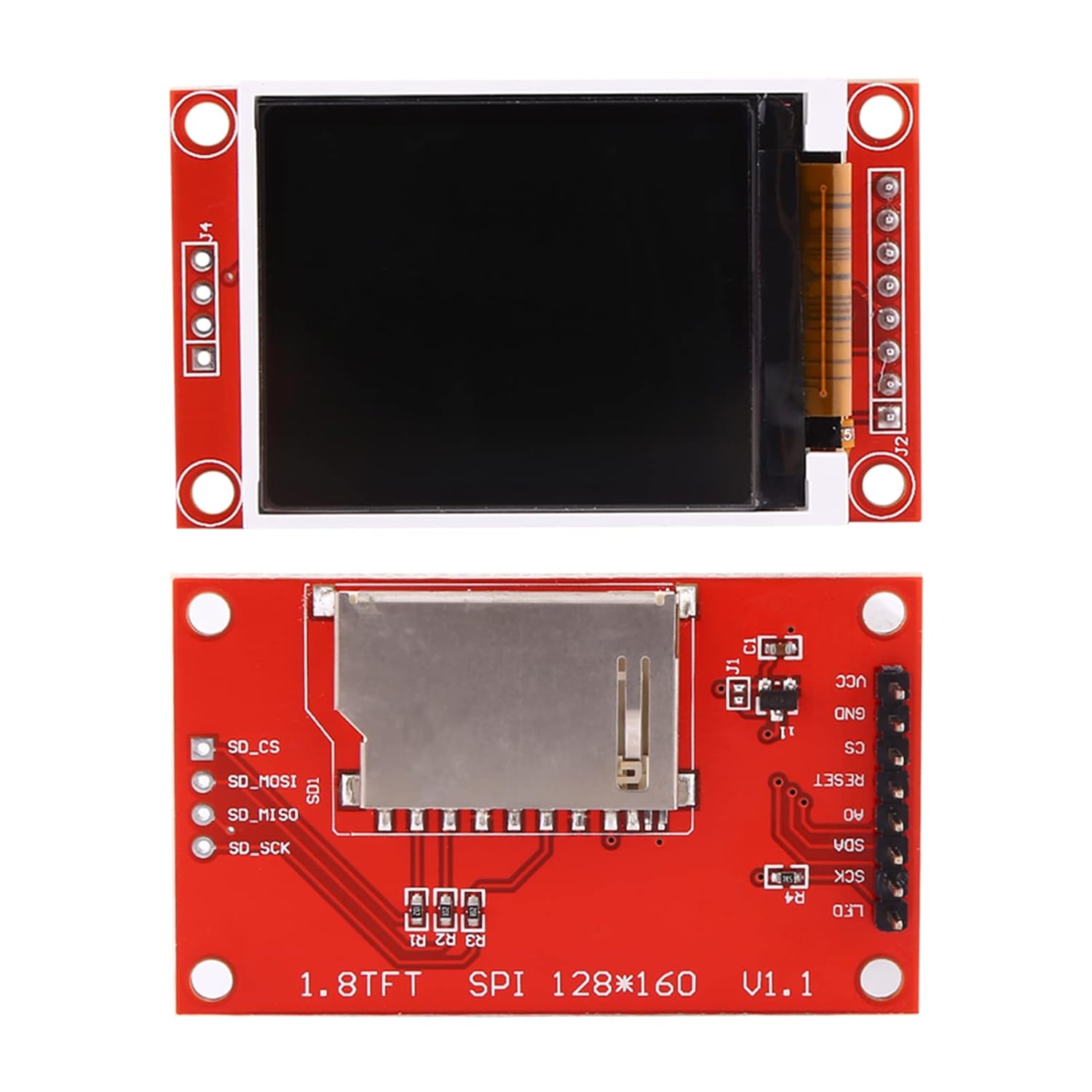

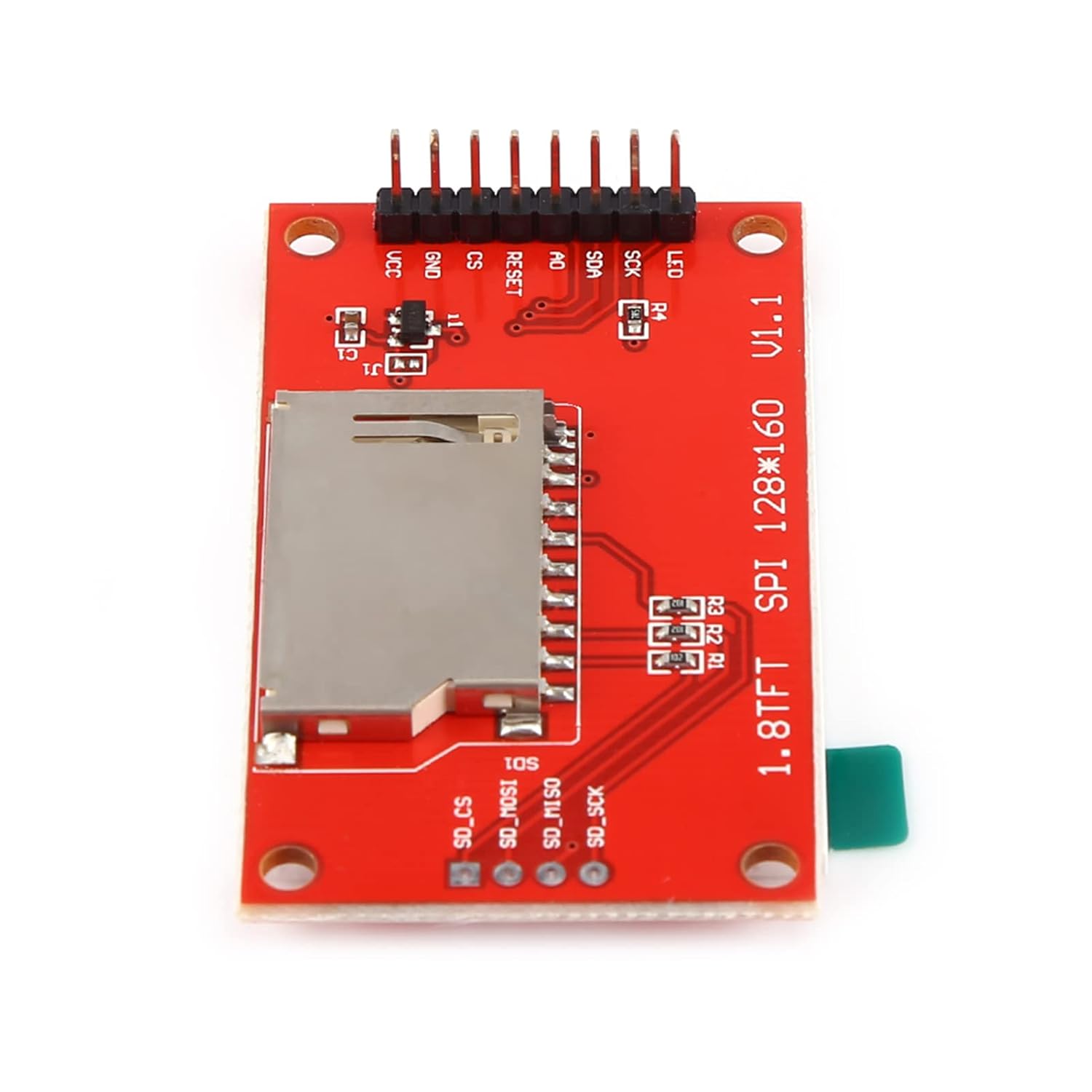

WITH CARD SLOT: LCD Display Screen Module uses SPI serial bus, at least four IO can light up display, and with SD card slot to facilitate the expansion experiment.

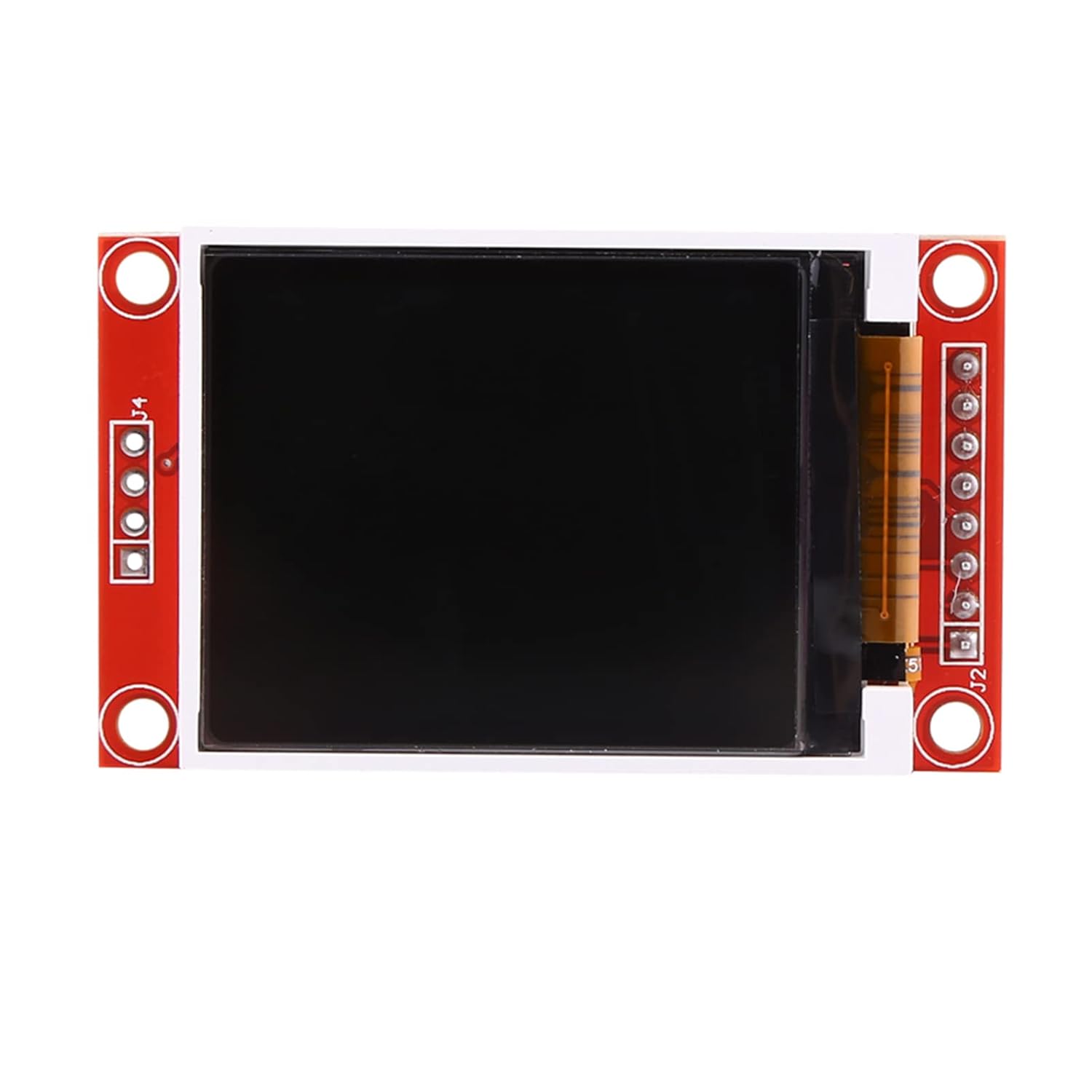

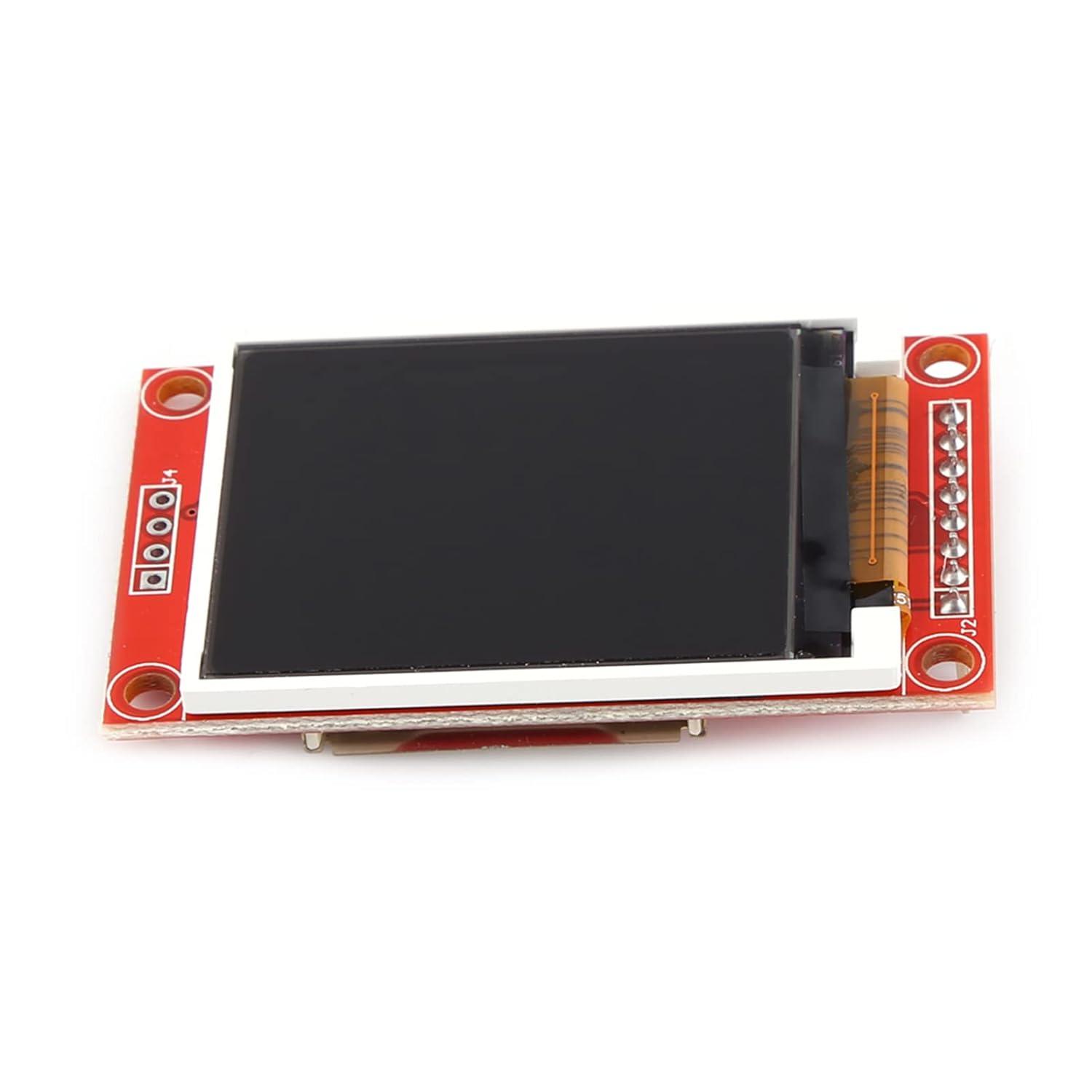

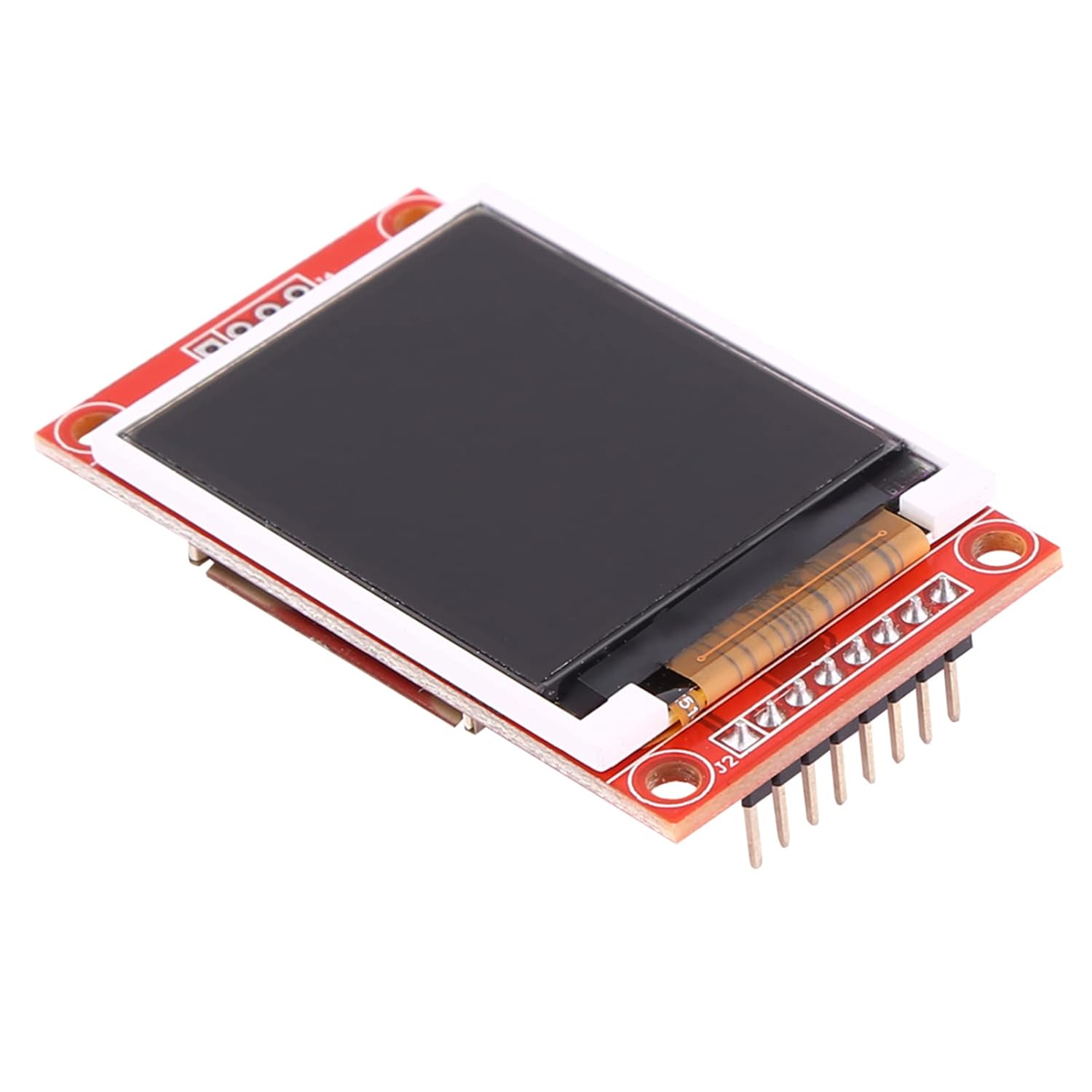

MAIN FUNTION: This module includes LCD display, control circuit of backlight and touch screen control circuit. 1.8in color screen, supporting 16 bit RGB 65K color display, display rich colors.
TECHNICAL PARAMETERS: LCD Display Touch Panel adopts 4 line SPI communication mode, driving IC is ST7735, resolution is 128x160, with touch function.
SUPPORT ANALOG & HARDWARE SPI: This TFT display module supports analog SPI and hardware SPI, less I/O port need. It can be driven by 8051 / AVR / PIC /ARM/STM32.
REMINDER: To Ensure You Purchase The Correct Product, Please Read The Description Carefully. Thanks For Your Attention.
